VAN RUTH® WIRE LINE CORE ORIENTATOR

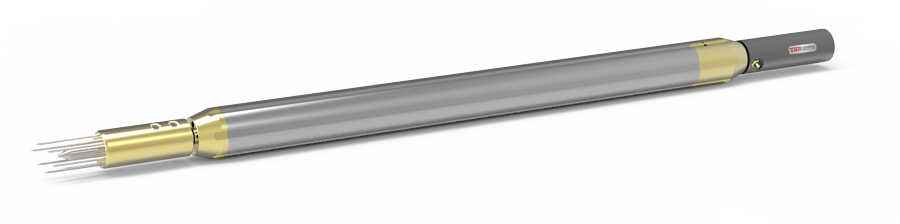

The VAN RUTH® WIRELINE CORE ORIENTATOR is an easy to use core orientation tool for use with wire line core drilling systems.
To use: raise rods 25 to 30mm from hole bottom and flush loose chips and sludge from core face.
Remove overshot assembly from wire line, attach core orientator to wire line and hang above rods. Extend contour pins to approximately 20mm beyond centre pin and lower the orientator to bottom taking care to lower gently on bottom as orientator will set under its own weight, any impact could result in damage to pins or face of core, always mark wire line for depth.
Remove the Core Orientator from hole and lay on level surface taking care not to displace contour pins and match core to pin configuration. Mark top of core and orientation is complete.
